Introduction
This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency.
It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.
Features
Suited for 40-80gsm paper.
Control bag length through the human-machine touch screen interface.
PLC programmable servo motor control system
Equipped with an accurate photocell system for printed mark tracking.
Color mark error stopping system
Automatic oil lubrication system
Main Technical Parameters
| Cutting length(C) | 150-460mm |
| Bag length(H) | 140-450mm |
| Bag width(L) | 80-250mm |
| Gusset depth(S) | 10-50mm |
| Standard flap(P) | 12-20mm |
| speed | 400pcs/min |
| Paper thickness | 40-80g/m2 |
| Power | 6kw |
| Total weight | 3500kg |
| dimensions | 4580(L)x1650(W)x1850(H)mm |
Sample

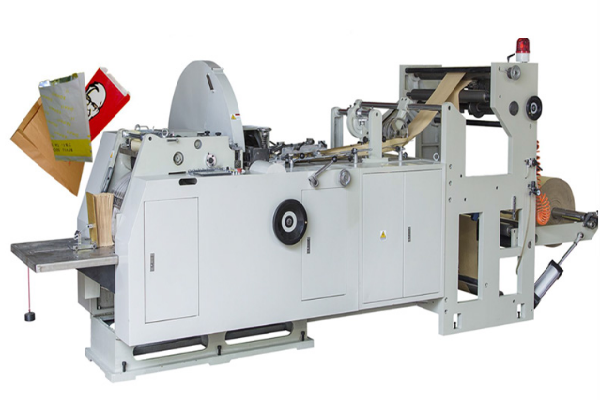

machine detail
