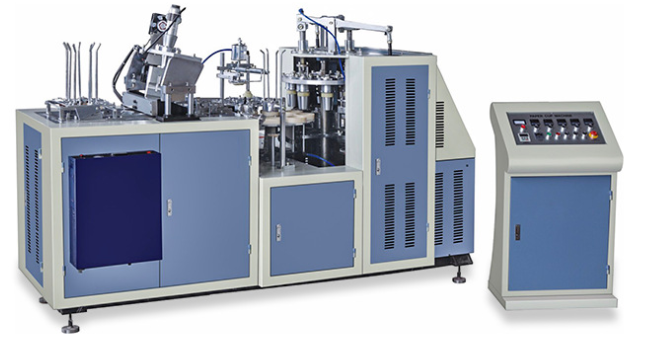

paper cup forming machine

Fully automatic high speed paper cup Forming Machinery  explanation:
To produce the cups, a special cardboard paper with oneside or double side PE lamination is used.
Precut paper is feeding automatically to a cone mould, and then the two edges are weldedby ultrasonic, without any glue. And at the same time, the bottom paper roll is die  cut and fed to the cup, then, the cup bottom is preheated and folded with the bottom paper,and goes to the next station,heating and then knurling, then next station is cup to curling and at last the paper cup  is finished and delivered.
 After quality check, counting and packaging your cup is ready for further use.

fully automatic high speed paper cup Forming Machinery  features:
 1. Paper cup bottom sealing by Switzerland Leister hot air station.
 2. It is easy to make cups of different size by changing moulds.
 3. Cup side sealing by ultrasonic.
 4. Double PE coating paper cups for cold drink as well as hot drink.
 5. Automatic lubricating system to every moving cams and bearings. so that machine can running for 24 hours non stop working.
 6.With our unique original designed single shaft bottom knurling system, this ensures the low leaking ratio and high quality of paper cups.
 7. Sucker import from Taiwan, which can reach 100 million times’ life span.
 8.Design with special cover, our machine is very good for heat dissipation and ensure the longer life span.
 9. with safty guard system, good and safe for operator.
10.with automatic cup collecting system, automatic stacking counting and discharging.
